Product Information

OnScreen with WordComplete

Onscreen Keyboard for

Adaptive Computer Access Needs

OnScreen with Word Complete is the latest Assistive Technology version of IMG's highly respected My-T-Soft onscreen keyboard utilities.

Windows 8.1 / 8 / 7 (32 & 64 bit) is Now Available!
(versions for Windows Vista / XP / 2000 / NT / Me / 98 also available)

  • OnScreen with Word Complete is used by individuals who need an alternative computer access method to the physical keyboard, can use any pointing device or switch, and need a keyboard onscreen as their primary text input device
  • For single switch scannning, see OnScreen with CrossScanner
  • For Commercial use, check out the IMG Commercial Products Home Page
  • For Custom Keyboards & User Interfaces, see IMG's Build-A-Board System.

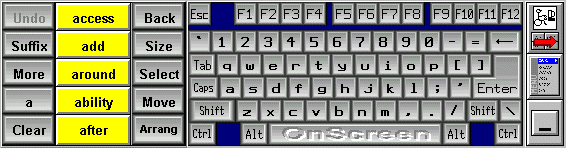

OnScreen with US Standard 101 Keyboard & WordComplete Action Panel
OnScreen with US Standard 101 Keyboard & WordComplete Action Panel

OnScreen with Word Complete provides onscreen keyboard emulation that controls Windows functions (including logon) and all Windows programs. The Assistive Technology version provides a wealth of features specifically designed for use by individuals who can not easily use common pointing devices.

It also offers over 200 international onscreen keyboards, word prediction / word completion, show/hide keys, zoom over keys, color and key background inversion, text to speech, 11 user panels, user programmable macros, and complete control over all computer functions.

Written at the same level as the operating system, it offers infinitely sizeable and programmable, US & International onscreen keyboard layouts, macro capabilities, network logon security, total user control, and works with all Windows based pointing devices and software applications.

New Features in OnScreen!

  • Version 1.80
  • Support for Windows 8.1 / 8 / 7 (32 & 64 bit)
  • Workstation / Network Logon Options - Windows 8.1 8 / 7 / Vista
  • New configurable location options for users - private or shared
  • LetterAssist
  • Letters on keyboard integrated with WordComplete candidates
  • WC-Assist
  • WordComplete Assist - Shortcut options to WordComplete candidates for less mouse movement
  • Keyboard Scanning
  • Operate OnScreen entirely from a single switch (mouse button)
    Complete customizable approach for panels, rows/columns, and keys
    Step scanning options, Text-to-speech integration
  • Advanced Word List manager for making, managing, & merging word lists
  • Even more layouts, now over 200 keyboards providing worldwide coverage
  • Ability to run Build-A-Board Custom Keypad layouts
  • Numerous customer requested enhancements & updates

Features

  • Seamless operation from any Mouse, Trackball, Pen, Touchscreen or any adaptive pointing device

  • Microsoft Windows 8.1 / 8 / 7 (32 & 64 bit) / Vista / XP / 2000 Compatible

  • Options for interfacing with specialty and assistive technology pointing devices

  • CrossScanner Support - includes tight integration with OnScreen and cooperative operational features

  • Key Magnifier option - 3 sizes available, enlarges key for easier identification

  • Key Highlight option - visual indication of key pointed to

  • AutoScroll - for larger sizes (larger than screen) automatic scroll into view

  • Scroll Control window for CrossScanner / Touchscreen users

  • TurnAway add-on for Head Mouse users

  • Text-To-Speech Option

  • Text-To-Speech - audio feedback of key pointed to, with Repeat option

  • Text-To-Speech - Speak word typed upon WordCompletion

  • Text-To-Speech - Setup & Speak window - echo what has been typed

  • Word List options - Now supports whole sentences and spaces between words

  • Word List options - International Word lists

  • Word List options - Manage & Save Word Lists

  • Word List options - Read in and process external documents & files to add to current Word List

  • Keyboard Scanning - operate OnScreen entirely from a single switch (mouse button (left-click))

  • Keyboard Scanning - Complete customizable approach for panels, rows/columns, and keys

  • Workstation / Network Logon Options

  • Developer Tool Kit and Extensions

  • Developer examples of integrating into existing applications

  • Show & Hide Keys

  • Selectable Sizes

  • Realistic 3D graphics

  • Infinite Sizing

  • Support for Custom Keyboards and Key Panels - completely customizable user interfaces

  • 11 panels, individually selectable, or create your own with Build-A-Board

  • Great for editing - Quick & Easy!

  • Special Windows Short-cut Keyboard - Power Users Dream!

  • 101 & 104 key layouts

  • Multiple Keyboard Layouts with ABC Layout for Non-Typists

  • International support - numerous keyboard layouts from around the world

  • Create Macro Keys & Panels

  • Specific Key & Key Combination Enable / Disable

  • Attach Executable programs to Keys & Key Combos or Window Activation

  • Includes the Calculator with Calculator Tape & Send Feature

  • Time & Date Display

  • Memory, Disk Space, Resources status Display

  • Completely Configurable for all of your needs

  • Color-code Panels for easy identification

  • On-line Quick Help for First-Time Users

  • Minimizes to a Button for convenient access

  • Once you use it, you won't want to live without it!

  • Keyboard not required (Just Say No... to your Keyboard.)

  • End-user and Developer Support

Word Prediction, Adaptive Word Completion

With the WordComplete / Action panel open, as you begin to type, a frequency sorted list of words is presented to the user. If more letters are typed, the choices reflect the new list of candidates. A single click of the word will complete the word in the document or e-mail being typed into. Undo becomes available, and the word's frequency count is incremented. If a new word is typed, the word is added into the user's Word Lists. Auto-spacing, auto-capitalization, suffixes, and other WordComplete features can greatly increase the typing speed and accuracy of the user!

Over 200 "Heads-Up Display" Infinitely Sizeable On screen Keyboards

ABCD Alphabetical, QWERTY, 3 DVORAK's, and over 200 International (German, Spanish, French, Greek, Hebrew, Arabic, Russian, etc.) with Edit and Numeric panels.

Minimize Keystrokes, Mouse Clicks and Menu Selections

Store up to 2000 keystrokes/menu selections (or the applications macro scripts) on each button. Up to 15 buttons can be grouped on individual Panels, which auto-open when their assigned application becomes active.

  • OnScreen Windows Control Panel 1 & Web Macro Panel Open
OnScreen Windows Control Panel 1 & Web Macro Panel Open

Assignable Functions for Pointing Device Buttons

Assign any of 63 different functions to each button. Popular keys such as Shift, Esc, Enter, Ins, Ctrl, etc, can be assigned at anytime

Pop-Up Calculator with pop-up Tape and Send Function

A standard 4 function calculator with memory, that always stays on top, has its own pop-up Tape and Send function that places the display information right into your current document or field.

OnScreen has over 150 functions on 11 sliding panels in 12 base screen sizes with infinite larger sizes. Any panel grouping can be selected at any time. It remains active as a Button on the active application and runs under Windows 95 / 98 / Me / NT / 2000 / XP / Vista / 7 / 8 / 8.1 using minimal Windows Resources.

Specifications

On-Screen keyboard software written as standard Windows application
  • Compatible with all properly written Windows applications
  • Developed in C/C++ - written at same level as Windows operating system for maximum capabilities
  • Accesses Windows API via standard interfaces/System DLLs - No frameworks or special environment required
  • Support for all Windows variations since Windows 3.0, including Windows CE
  • Field proven technology since 1993
Keyboard designed so pointing device can fully operate Windows
  • Keyboard layouts as binary data files for minimal space requirements
  • Fully emulates 101/104 physical keyboard
  • 11 individually selectable panels, including Alpha keyboard, Edit, and Numeric keypad
  • 12 base sizes, infinite larger sizes
  • Over 200 US, international, and variation layouts
  • Supports IMG's Build-A-Board Layouts
User, developer, and integrator command and control options
  • Provides ability for user to operate without need for physical keyboard
  • Operator mode for secure application integration
  • Developer's Kit (SDK) for controlling and manipulating keyboard
Modular support options/capabilities
  • Sounds
  • Transparency
  • Windows logon options
  • External Support utilities (Developer's Kit)
Operational customization options
  • Show/Hide keys to remove potentially undesirable keys/options (Alt, Control, Function keys, etc.)
  • Key options to remap/modify key actions
  • Macro panels for arbitrary/lengthy keyboard actions
Visual customization options
  • Custom views/colors/key images
  • Supports themes for visual integration
  • Integrates with IMG's Build-A-Board for complete customization capabilities
Extensive feature list
  • Unique and specialized features to address customer needs
  • Detailed help, documented options, on-line knowledgebase
  • Advanced Technical support, programming, and program level integration assistance available

Technical Information

OnScreen is a standard Windows Application and does not require any special drivers, and should work with all pointing device (mouse, touchscreen, pen, HID, etc.) interfaces, along with keyboard and mouse emulation drivers that are compatible with the ones that ship with Microsoft Windows.

There are countless of configuration options, settings, and special features available that have been added by customer requests since the original product release in 1993. Refer to the User's Guide for release specific technical notes, product options, and complete documentation.

Order - Onscreen with Word Complete


OnScreen Suggested Retail Price is US $119.95.

  • Supports: Windows 8.1 / 8 / 7 (32 & 64 bit) Vista / XP / 2000
  • Onscreen 1.75 for Windows 95 / 98 / Me / NT is still available here
  • Catalog #: 11101

  • Upgrade to OnScreen 1.80 from any previous release - US $59.95

    • Supports: Windows 8.1 / 8 / 7 / Vista / XP / 2000
    • Catalog #: 11106

    Just want to license electronically?
    Download and install the software, then click on "Purchase License Now" from the License Manager!



    For OEM, Integrator & Reseller Pricing or EndUser Single, Multi-Site, or Enterprise Licensing
    (including Keyless Licensing, Image Ready integration, and Programming Integration Support),

    please call 800-889-0987 (+1 818-701-1579) or contact IMG Sales
